Proline Prosonic Flow W 400捆綁式超聲流量計

可靠、靈活、免維護 —— 非侵入式安裝方式，穩定輸出高精度流量測量結果，即使在狹小受限空間內使用

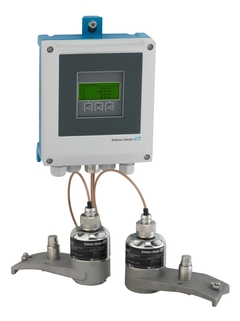

Proline Prosonic Flow W 400捆綁式超聲流量計

—— 輕松的非侵入式安裝方式

 —— 無需中斷過程

—— 免維護

產品規格參數:

• 最大測量誤差

  Volume flow:
  ±3% o.r. for DN15
  ±2% o.r. for DN25 to 200
  ±2% o.r. above DN200

•


• 測量范圍

  0 to 15 m/s (0 to 50 ft/s)

•


• 介質溫度范圍

  –40 to +130 °C (–40 to +266 °F)

•


• 最大過程壓力

  N/A

應用領域

Prosonic Flow W 400捆綁式超聲流量計是導電性和非導電性液體測量的理想選擇。安全、經濟、免維護。采用非侵入式安裝方式，進行雙向流量測量，不受壓力、密度、電導率的影響，無需中斷過程。

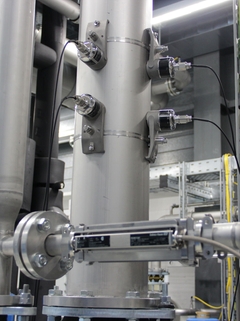

得益于FlowDC功能，儀表安裝靈活便捷。流量計僅需預留2 x DN前直管段安裝長度就能保證設計精度，即使在擾動流體條件下測量。

使用專用耦合墊安裝，確保捆綁式超聲流量測量系統在整個生命周期內免維護。

Heartbeat Technology心跳技術支持自診斷、自校驗和自監測功能，持續輸出全透明的過程信息。在故障發生前能夠提前檢測出黏附狀況。

優勢

• 安裝靈活 —— FlowDC功能可以縮短前直管段安裝長度要求

• 測量可靠 —— 傳感器技術成熟，安裝系統免維護，保證信號長期穩定

• 高性價比 —— 低投資成本，擴大了適用管徑范圍，最大口徑可達DN 4000 (160")

• 操作便捷 —— 網頁服務器支持遠程訪問儀表，顯示單元方便現場人機交互

• 信息透明 —— 采用Heartbeat Technology心跳技術，配備自診斷、自校驗和自監測功能，確保過程始終合規安全

• 測量原理

  超聲波流量測量

•


• 產品標題

  Clamp-on meter with Heartbeat Technology and web server for the water and wastewater industry.
  Short inlet run thanks to FlowDC.

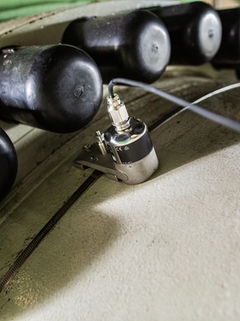

  Bidirectional measurement for water and wastewater as well as process water and hydropower plants.

•


• 傳感器特點

  Low capital investment – cost-effectiveness increases with pipe diameter (up to DN 2000/80"). Long-term stable signal – maintenance-free permanent mounting from outside with coupling pads. Reliable measurement on various pipe materials – sensor for GRP and plastic pipes available.
  Mounting without process interruption. Wide nominal diameter range: DN 15 to 4000 (? to 160"). Medium temperature up to +130 °C (+266 °F).

•


• 變送器特點

  Safe operation – no need to open the device due to display with touch control, background lighting. Full remote access – web server. Integrated diagnostics, verification and monitoring – Heartbeat Technology.
  Transmitter housing made of durable polycarbonate or aluminium. Remote version for wall mounting. Integrated data logger: measured values monitoring.

•


• 公稱口徑范圍

  DN15 to 4000 (1/2 to 160")

• Sensor materials

  Clamp on system:
  Sensor holder 1.4301 (304), 1.4404 (316L)
  Sensor housing 1.4301 (304), 1.4404 (316L)
  Strapping bands 1.4301 (304), 1.4404 (316L)

•


• 測量變量

  Volume flow, Flow velocity, Sound velocity

•


• 最大測量誤差

  Volume flow:
  ±3% o.r. for DN15
  ±2% o.r. for DN25 to 200
  ±2% o.r. above DN200

•


• 測量范圍

  0 to 15 m/s (0 to 50 ft/s)

•


• 最大過程壓力

  N/A

•


• 介質溫度范圍

  –40 to +130 °C (–40 to +266 °F)

•


• 環境溫度范圍

  Sensor DN 15 to 65: -40 to 130°C
  Sensor DN 50 to 4000: -40 to 130°C

•


• 傳感器外殼材質

  N/A

•


• 變送器外殼材質

  Wall-mounted housing
  Polycarbonat; AlSi10Mg, coated

•


• 防護等級

  Transmitter: IP66/67, Type 4X enclosure
  Sensor: IP66/67, Type 4X enclosure, IP68, Type 6P enclosure (optional)

•


• 顯示/操作

  4‐line backlit display with touch control (operation from outside)
  Configuration via local display, web browser and operating tools possible

•


• 輸出

  3 ouputs:
  4‐20 mA/4‐20 mA HART (active)
  Pulse/frequency/switch output (passive)
  Pulse/frequency/switch output (passive)
  Modbus RS485

•


• 輸入

  Status input

•


• 數字通信

  HART

•


• 電源

  AC 100 to 240 V / AC/DC 24 V

• Approvals

  cCSAus

•


• 其他認證和證書

  其他認證和證書

• 產品安全性

  CE, C-tick marking, EAC-marking

•


• 計量認證和證書

  Flowmeter verification for all frequencies except 0.3 MHz, reference line size: 5 MHz DN 50, all other frequencies DN 100
  Verification performed on accredited calibration facilities (acc. to ISO/IEC 17025)
  Heartbeat Technology complies with the requirements for measurement traceability according to ISO 9001:2015 – Section 7.1.5.2 a

•


• 船級認證和證書

  船級認證和證書
